Product Overview

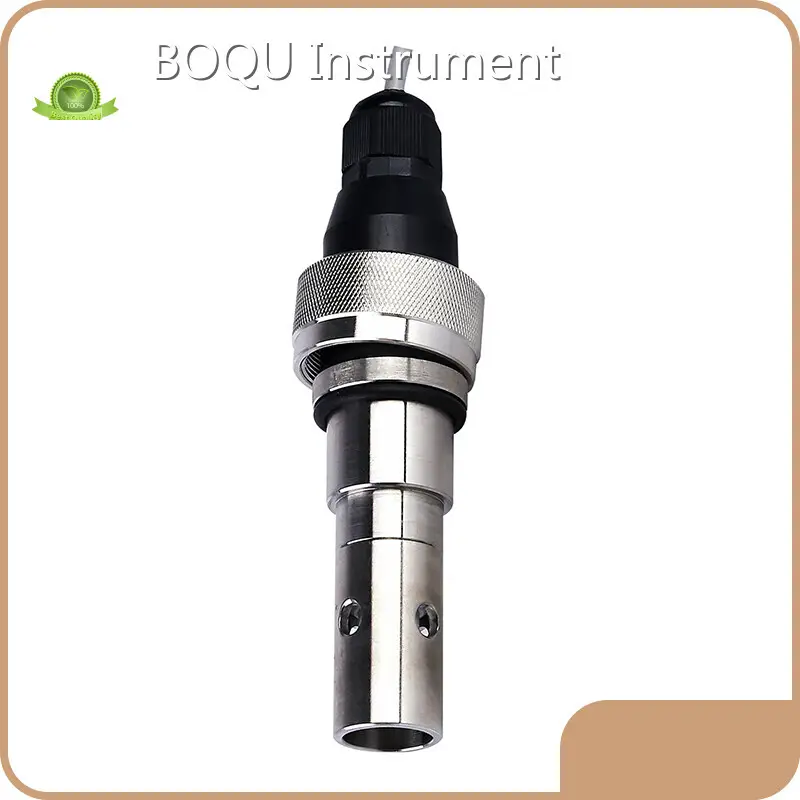

- DDG-series industrial online conductivity electrodes (example model DDG-0.01(0.1)) designed for accurate on-line measurement of ultra?pure and pure water conductivity. Typical electrode constants for this series include 0.01 and 0.1 (other K variants such as K=10 or K=30 are also offered), with measuring ranges like 0–20 μS/cm and 0–200 μS/cm. Units are manufactured to customer specifications and intended for demanding industrial water systems (power plants, water treatment, seawater purification, etc.).

Product Features

- Robust double?cylinder construction in titanium alloy or SS316L with natural chemical passivation for excellent corrosion resistance.

- Conductive surfaces are anti?infiltration and resistant to nearly all liquids except hydrofluoric acid; K=10/30 variants use large-area platinum electrodes for strong acid/alkali resistance and anti?pollution performance.

- Multiple temperature compensation sensor options (NTC and Pt types such as PT100/PT1000 and other user?specified values).

- Working pressure up to ~0.6 MPa and flexible mounting/connection options (pipe, hose, flange; diameters φ6, φ8, φ14, etc.).

Product Value

- Provides reliable, high?precision conductivity monitoring for critical processes where water purity is essential (steam cycles, ultra?pure water lines, desalination).

- Durable materials and passivation reduce maintenance and downtime, increasing lifetime and lowering total cost of ownership.

- Customizable temperature compensation and mechanical connections allow seamless integration into existing systems and instrumentation.

- Quality?controlled production and export experience support dependable supply and consistent performance.

Product Advantages

- High corrosion resistance (titanium/SS316L with passivation) and strong contamination tolerance reduce sensor drift and fouling.

- Platinum electrode options deliver chemical robustness for aggressive media and demanding industrial environments.

- Built-to-order manufacturing ensures sensors meet exact customer specifications (electrode constant, temp compensation, connection type).

- Industry?grade pressure rating and flexible installation choices make the sensors versatile for varied plant layouts.

Application Scenarios

- Thermal and power plant boiler/feedwater and condensate monitoring (ultra?pure water conductivity control).

- Municipal and industrial water treatment plants (process control, polishing, and monitoring).

- Sewage treatment and effluent monitoring where robust electrodes are needed.

- Desalination and seawater purification systems and other special industries requiring on?line conductivity measurement of low?conductivity waters.
