Digital Turbidity Meter by BOQU
Product Overview

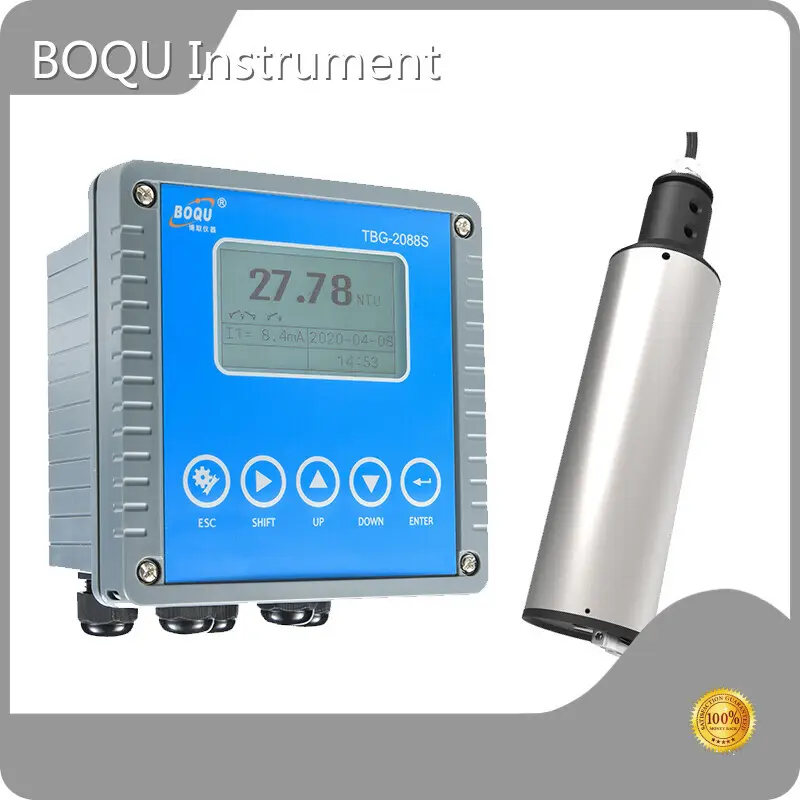

- BOQU TBG-2088S digital turbidity meter with ZDYG-2088-01 online digital turbidity sensor for continuous turbidity measurement (NTU/FTU).
- Designed for industrial and municipal water monitoring with digital RS485 Modbus RTU communication and built-in datalogging.
- Rugged construction: meter housing IP65, sensor IP68/NEMA6; instrument dimensions 144×144×104 mm.
Product Features
- Wide measuring ranges: sensor options from 0.01–100 NTU up to 0.01–4000 NTU; meter up to 10,000 NTU.
- High resolution (0.01 NTU) and accuracy: meter ±2%; sensor ≤±1% or ±0.1 NTU (whichever is greater).
- Outputs: 4–20 mA analog, RS485 Modbus RTU digital, plus 3 programmable relays (5 A).
- Fast, simple calibration (sample or slope calibration) and quick verification; built-in datalogger.
- Robust materials (SUS316L + PVC body, fluorine rubber O?rings), standard cables (meter 3 m, sensor 10 m, extendable to 100 m), and wide power options (meter 90–260 VAC; sensor DC 12 V).
Product Value
- Enables reliable, continuous turbidity monitoring to protect public health and meet regulatory requirements.
- Supports process optimization (filter backwash timing, treatment performance) and early detection of water quality issues.
- Remote communications and datalogging allow integration into SCADA systems for trend analysis and automated control.
- Durable design lowers maintenance frequency and total cost of ownership.
Product Advantages
- Advanced, reliable design with proven quality control and factory testing.
- Fast calibration/verification and long service life for minimal downtime.
- Flexible I/O (analog, digital, relays) and strong environmental protection for harsh field conditions.
- Food?grade/industrial materials (SUS316L) suitable for potable and seawater options.
- Compact panel form factor for easy installation and retrofit.
Application Scenarios
- Drinking water treatment plants and distribution network monitoring.
- Process water monitoring and industrial utilities (recirculation lines, cooling water turbidity control).
- Filter performance monitoring and automatic backwash control.
- Water works, water quality monitoring stations, and other industrial water treatment applications.
