Good Selling Online Cod Meter Company
Product Overview
Certainly! Here is the summary of the “Good Selling Online Cod Meter Company” product based on the detailed introduction of the YCL-3100 Sample Filtration System:
Product Features
**Product Overview**
Product Value
The YCL-3100 Sample Filtration System by BOQU is a pretreatment device designed for surface water, sewage, and other water samples with high suspended solids or sludge. It processes samples through precipitation, mixing, and homogenization before delivering them to various online water quality analyzers such as COD, ammonia nitrogen, total phosphorus, and total nitrogen analyzers for real-time monitoring.
Product Advantages
**Product Features**
Application Scenarios
- Two sampling modes: triggered externally or periodic sampling
- Automatic self-cleaning of pipeline, water cup, and sedimentation tank after each sampling
- High-precision ultrafiltration technology filtering particles as small as 0.1–0.15 μm
- Built-in stirrer for full mixing of water samples
- Alarm reminders with synchronized display of system status
- Stable operation, even with high sludge volume or floating sludge conditions
**Product Value**
The system enhances the accuracy and reliability of online water quality monitoring by ensuring well-pretreated, homogenized, and filtered samples. Its automation and self-cleaning reduce manual maintenance efforts, improve sample integrity, and enable continuous real-time environmental monitoring critical for water treatment, pollution control, and regulatory compliance.
**Product Advantages**
- Advanced filtration and mixing technology ensure precise and representative samples
- Self-cleaning function improves operational efficiency and reduces downtime
- Compatible with a broad range of online analyzers covering multiple water quality parameters
- Robust design suited for challenging water samples with high suspended solids and sludge
- Backed by BOQU’s industry expertise, accurate market orientation, and prompt customer service
**Application Scenarios**
Ideal for water treatment plants, environmental monitoring stations, industrial effluent treatment, sewage analysis, and any facilities requiring continuous and automated water quality monitoring of parameters such as COD, nitrogen, phosphorus, heavy metals, fluoride, BOD, and more.
---
If you need the summary tailored or expanded further, please let me know!

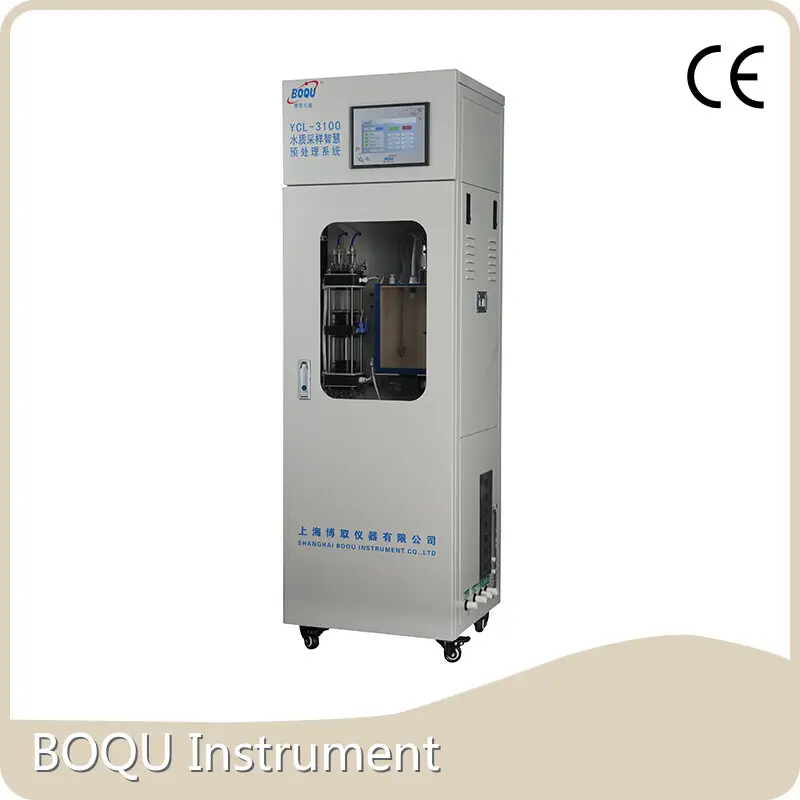

YCL-3100
SAMPLE FILTRATION SYSTEM
BOQU Sample Filtration Systems is a pretreatment equipment applied to surface water, sewage and other water sample containing high suspended solid,sludge. After precipitation, mixing and homogenization, the water sample will be transported to COD,Ammonia nitrogen, Total phosphorus, Total nitrogen and other online water quality analyzer according to the procedure after passing through the sampling cup, and the online water quality analyzer can be triggered to start the measurement. The system is equipped with automatic cleaning function. After completing a sampling process, the pipeline, water cup and sedimentation tank can be cleaned by external clean water.
TECHNICAL PARAMETERS
| Instrument | Sample Filtration System |
Environmental requirements | Indoor with adjustable temperature, The recommended temperature is +5 ~ 28 ℃; Humidity ≤ 90% (no condensation); |
Power | AC220 ± 10%V, 50 ± 10% Hz, 5 A; |
Dimension | 1570×500×450 mm ;( high × wide × deep) |
Maintenance cycle | One month, about 30min each time; |
Output | Switching value output |
Ultrafiltration technology | Filter 0.1μm particles |
Clean function | Self-cleaning function |
YCL-3100 Sample Filtration System mainly work with below Online Water Quality Analyzer
Item | Product | Model | Range(mg/L,ppm) |
1 | Online COD Analyzer | CODG-3000 | 5-15000 |
2 | Online Ammonia nitrogen Analyzer | NHNG-3010 | 0.0~1500.0 |
3 | Online Total nitrogen Analyzer | TNG-3020 | 0-500.0 |
4 | Online Total phosphorus Analyzer | TPG-3030 | 0-500.0 |
5 | Online Total copper Analyzer | TCuG-3050 | 0~10.0 |
6 | Online Total nickel Analyzer | TNiG-3051 | 0.00~10.00 |
7 | Online Hexavalent chromium Analyzer | GeG-3052 | 0.00-10.00 |
8 | Online Total chromium Analyzer | TGeG-3053 | 0.00-3.00 |
9 | Online Total lead Analyzer | TPbG-3055 | 0.00-3.00 |
10 | Online Total zinc Analyzer | TZnG-3056 | 0.00-3.00 |
11 | Online Total arsenic Online Analyzer | TAsG-3057 | 0.00-3.00 |
12 | Online Fluoride Analyzer | TFG-3058 | 0.00~50 |
13 | Online Total Cadmium Analyzer | TCdG-3059 | 0.00-3.00 |
14 | Online Total iron Analyzer | TFeG-3060 | 0.00-5.00 |
15 | Online Total manganeseAnalyzer | TMnG-3061 | 0.00-5.00 |
16 | Online Nitrate nitrogen Analyzer | TNO3G-3062 | 0.0~500 |
17 | Online BOD Analyzer | BODG-3063 | 0-15000 |
Note:please contact BOQU Instrument if range is not this table. | |||
MAIN FEATURES
which can be triggered externally or sampled periodically
the system will be cleaned after the measurement is completed
ultrafiltration technology with high filtration precision, it can filter 0.15μm particles
Alarm reminder
- With alarm reminder, and synchronously display the current state
A stirrer is built into the water cup to ensure the full mixing
works reliably for a high sludge volume index or floating sludge.
