Industrial PH/ORP Meter Orp Meter Directly Sale

Product Overview

1) Product overview

Product Features

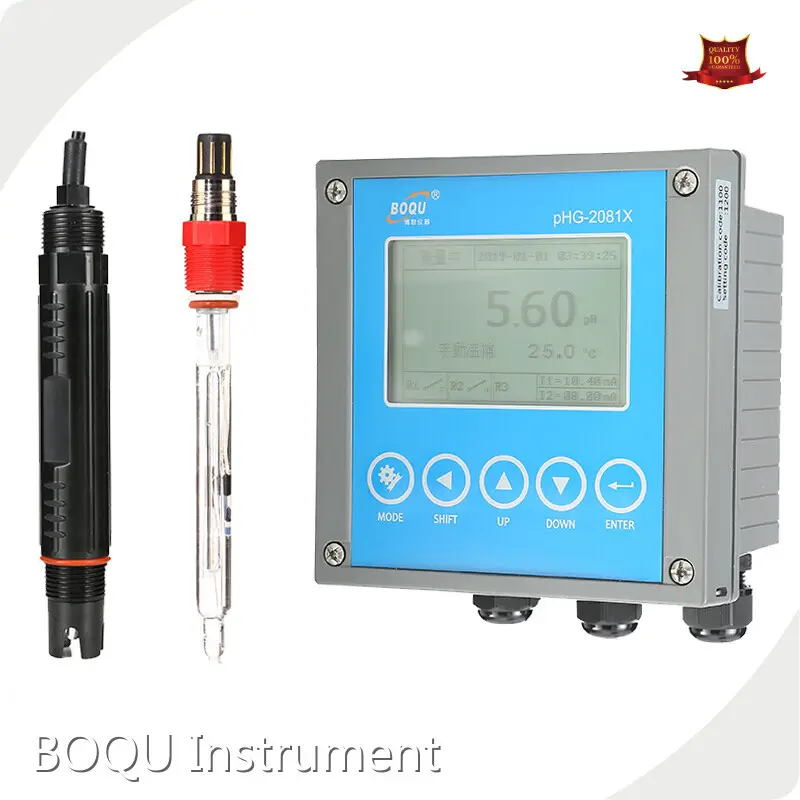

- Model: PHG-2081X Industrial pH/ORP (mV) Meter from BOQU.

Product Value

- Purpose: continuous industrial measurement of pH or ORP (mV) plus temperature, with local display, data-logging and communications/control outputs.

Product Advantages

- Mounting and protection: panel, wall or pipe mountable, IP65 protection rating.

Application Scenarios

- Power and interface: 90–260 VAC supply, backlit ultra-large dot?matrix LCD, RS485 (Modbus RTU) communication and internal datalogger.

2) Product features

- Measurement ranges and accuracy: pH -2.00 to +16.00 (resolution 0.01, accuracy ±0.01 pH); ORP -2000 mV to +2000 mV (resolution 1 mV, accuracy ±1 mV).

- Temperature: Pt1000/NTC10K compensation, measure/compensation range -10.0 to +130.0 °C, resolution 0.1 °C, accuracy ±0.2 °C.

- Inputs/outputs: input impedance >10^12 Ω; two isolated 4–20 mA outputs (pH/ORP and temperature), current output accuracy ±0.05 mA, max load 500 Ω.

- Alarms and control: three relays (multifunctional), relay rating 5 A / 250 VAC or 5 A / 30 V DC, programmable timing and delays.

- Communications and data: RS485 Modbus RTU (9600/19200/38400), internal datalogger (up to 500,000 records).

- Environmental/specs: working temp 0–70 °C, storage -20–70 °C, consumption

3) Product value

- Provides accurate, stable, continuous monitoring of pH/ORP and temperature for process control and compliance.

- Facilitates automated control via isolated 4–20 mA outputs and relays, and enables remote supervision and integration into SCADA/PLC systems via Modbus RTU.

- Onboard datalogging and large display simplify local diagnosis, record keeping and traceability.

- Robust IP65 design and multiple mounting options make it adaptable to many industrial installations.

4) Product advantages

- High measurement precision and high input impedance minimize sensor loading and improve reliability.

- Isolated outputs and RS485 communications reduce interference and simplify integration into control systems.

- Large capacity datalogger and multifunctional relays offer flexible alarm and control schemes.

- Rugged build, IP65 protection and multiple mounting modes increase installation versatility.

- Manufactured by Shanghai Boqu Instrument Co., Ltd. with customizable specifications, full production capability and proven commercial readiness.

5) Application scenarios

- Wastewater treatment and environmental monitoring (effluent control, regulatory compliance).

- Drinking water treatment and distribution monitoring.

- Industrial process control: chemical plants, boiler/feedwater monitoring, cooling towers.

- Food & beverage and fermentation processes requiring pH control.

- Aquaculture, laboratories and any industrial or municipal systems needing integrated pH/ORP and temperature measurement with logging and remote communications.
