Product Overview

1) Product overview

Product Features

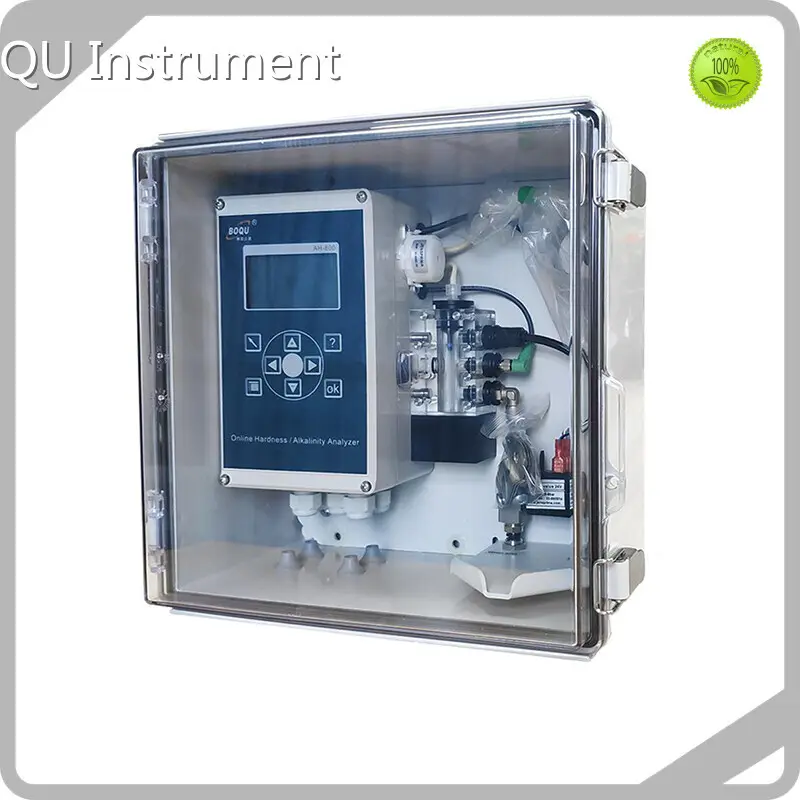

- The BOQU AH800 Ion Analyzer (Online Ion Meter) is an automatic titration-based online analyzer for monitoring water total hardness (or carbonate hardness) and total alkali.

Product Value

- It is a compact, panel-mounted unit (300 × 300 × 200 mm), IP65 rated, designed for continuous on-line water quality measurement with programmable sampling and flushing.

Product Advantages

2) Product features

Application Scenarios

- Fully automatic titration measurement with configuration assistant for simple commissioning and multi?lingual graphic display.

- Measurement ranges: hardness 0.5–534 ppm CaCO3; total alkali ~5.34–401 ppm (multiple reagent ranges available to match application).

- Performance: accuracy ≈ ±5%, repeatability ±2.5%; operating water temperature 5–45 °C; inlet pressure recommended 1–2 bar (0.5–5 bar max).

- Outputs and interfaces: 2 potential-free relays (max 250 Vac/Vdc, 4 A), 0/4–20 mA output, CAN interface. Power 90–260 VAC, low power consumption.

3) Product value

- Delivers continuous, reliable measurement of hardness and alkalinity to support process control, quality assurance and regulatory compliance.

- Automates titration and monitoring tasks to reduce manual testing, improve response time to water quality excursions, and help protect downstream equipment (softeners, boilers, heat exchangers).

4) Product advantages

- Robust design and rigorous quality control ensure stable, long-term performance; IP65 protection for harsh environments.

- Self?calibrating and self?monitoring features, minimal reagent and water consumption, and easy maintenance/cleaning lower operating costs and downtime.

- Flexible configuration (programmable intervals, flush times, alarm setpoints) and export-proven product backed by BOQU’s international sales/support experience.

5) Application scenarios

- Continuous monitoring and control in water softening plants, water blending stations and industrial water treatment systems.

- Use in boilers, cooling towers, process water circuits, beverage and food production, chemical plants, municipal water utilities and any facility requiring online hardness/alkalinity control.
