PH/ORP Sensor Ph Electrode Probe Vendor

Product Overview

1) Product overview

Product Features

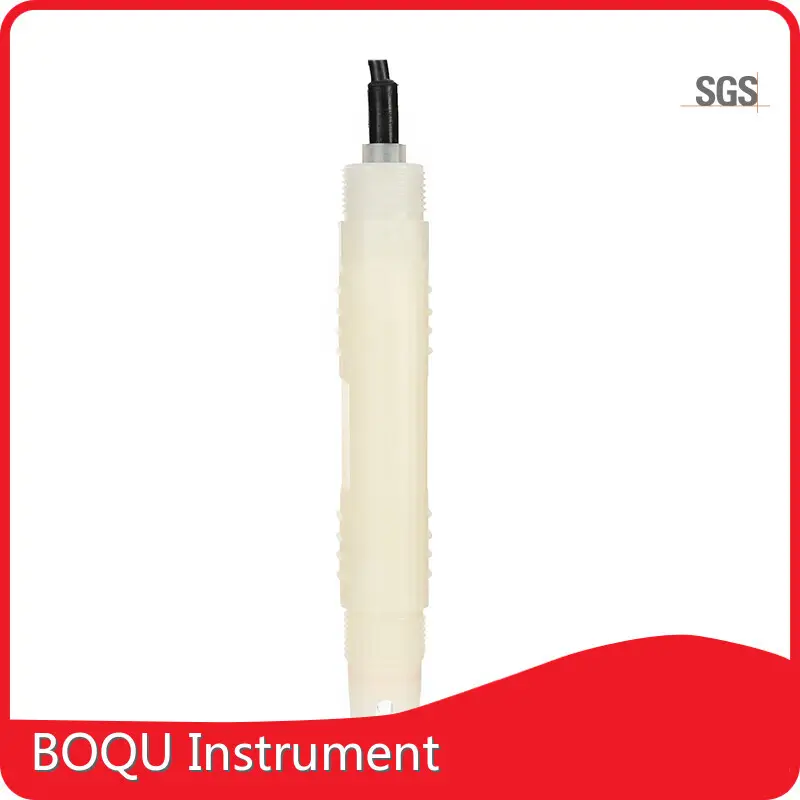

- PH/ORP Sensor “PH8010F” online pH electrode probe from Shanghai Boqu Instrument Co., Ltd.

Product Value

- Measures pH over the full range 0.0–14.0 with specified accuracy ±0.1 pH; slope ≥96% and zero-point potential E0 = 7 pH ±0.3.

Product Advantages

- Built with PTFE housing and low?noise cable; fitted with upper and lower 3/4 NPT pipe threads for inline installation.

Application Scenarios

- Designed as a cost?effective industrial online pH electrode suitable for continuous monitoring.

2) Product features

- Solid dielectric design and a large-area PTFE liquid junction to prevent blockage and simplify maintenance.

- Long-distance reference diffusion channel to extend service life in harsh or contaminated media.

- High-quality low-noise cable enabling interference-free signal transmission over 20 meters.

- Fast response, good repeatability and long working life; no additional dielectric required and minimal routine maintenance.

- Interchangeable with similar electrodes from other manufacturers.

3) Product value

- Delivers dependable, continuous pH measurement at a competitive price, providing good cost performance for process control and monitoring.

- Low-maintenance construction reduces downtime and operating costs.

- Robust reference design and PTFE wetted materials improve lifetime in aggressive or fouled environments, lowering replacement frequency.

- Long, noise?resistant cabling and stable output support reliable remote installations and integration into control systems.

4) Product advantages (compared with peers)

- World-class solid dielectric and PTFE junction reduce fouling and maintenance needs.

- Extended reference diffusion channel enhances durability in harsh conditions.

- Superior signal integrity via low-noise cable for long cable runs (>20 m) without interference.

- High accuracy, fast response and repeatability combined with simple upkeep.

- Mechanical compatibility (standard NPT threads) and interchangeability with other brands make retrofit and replacement straightforward.

5) Application scenarios

- Industrial process control (chemical, pharmaceutical, pulp & paper) for continuous pH monitoring.

- Water and wastewater treatment plants (influent/effluent, neutralization, disinfection control).

- Environmental monitoring and laboratory feed?through installations.

- Food & beverage and aquaculture process monitoring.

- Any inline or remote pH measurement point requiring durable, low?maintenance electrodes (pools, cooling towers, and other utility systems).
