Product Overview
1) Product overview
Product Features

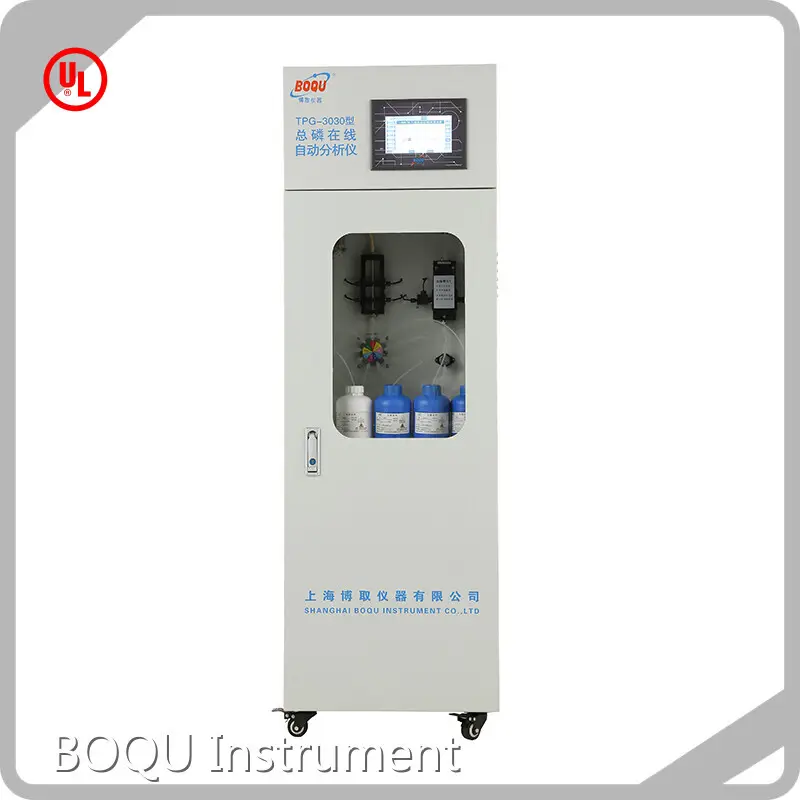

- BOQU TPG-3030 Online Total Phosphorus Meter — an online, automatic analyzer for continuous measurement of total phosphorus in water using the ammonium molybdate spectrophotometric method.
Product Value
- Designed for direct in-situ sampling (no chemical pre-treatment required) and real-time monitoring; selectable measuring ranges up to 0–500 mg/L TP (range options: 0–2; 0.1–10; 0.5–50; 1–100; 5–500 mg/L).
Product Advantages
- Rugged cabinet-mounted unit with touch-screen interface, data retention on alarm/power loss, and standard industrial outputs (4–20 mA, RS232, RS485).
Application Scenarios
2) Product features
- Precise reagent dosing via a visible photoelectric metering system; each reagent dose is as low as 1.5 ml to minimize consumption.
- Select valve assembly for accurate reagent sampling timing and peristaltic pump injection under negative pressure with an air buffer to protect pump tubing.
- Sealed high-temperature, high-pressure digestion module to accelerate reaction and avoid volatile corrosive losses.
- Uses imported PTFE transparent tubing (≥1.5 mm ID) to reduce clogging risk.
- Flexible operating parameters: measurement cycle (minimum ~50 min), adjustable digestion time (5–120 min), sampling intervals (55–9999 min), calibration interval (1–99 days), and monthly simple maintenance (~30 min).
3) Product value
- Enables continuous, automated, on-line monitoring of total phosphorus for regulatory compliance, process control, and environmental protection.
- Low reagent use and reliable dosing reduce operating cost and chemical handling.
- Automated data logging, alarm handling and automatic purge/resume after faults reduce manual intervention and downtime.
- Improves measurement reliability and consistency, supporting faster response to pollution events and better water quality management.
4) Product advantages
- Engineered for low failure rate and low maintenance compared with similar instruments.
- Independent intellectual property and mature design from BOQU Instrument with a quality management system.
- Compact, operator-friendly design with touch-screen control and standard industrial communications for easy integration.
- Strong after-sales/service support and logistics advantage from the manufacturer for fast response and bulk supply capability.
5) Application scenarios
- Online automatic monitoring of total phosphorus at wastewater (sewage) discharge points and industrial effluent outlets.
- Surface water and river monitoring stations for environmental protection agencies.
- Water and wastewater treatment plants for process control and optimization.
- Industrial sites (e.g., chemical, food, paper) requiring continuous phosphorus monitoring.
- Aquaculture farms, power plants, and other facilities where real-time nutrient monitoring is required.
