Texture Ec Sensor for Workplace
Product Overview
1) Product overview
Product Features

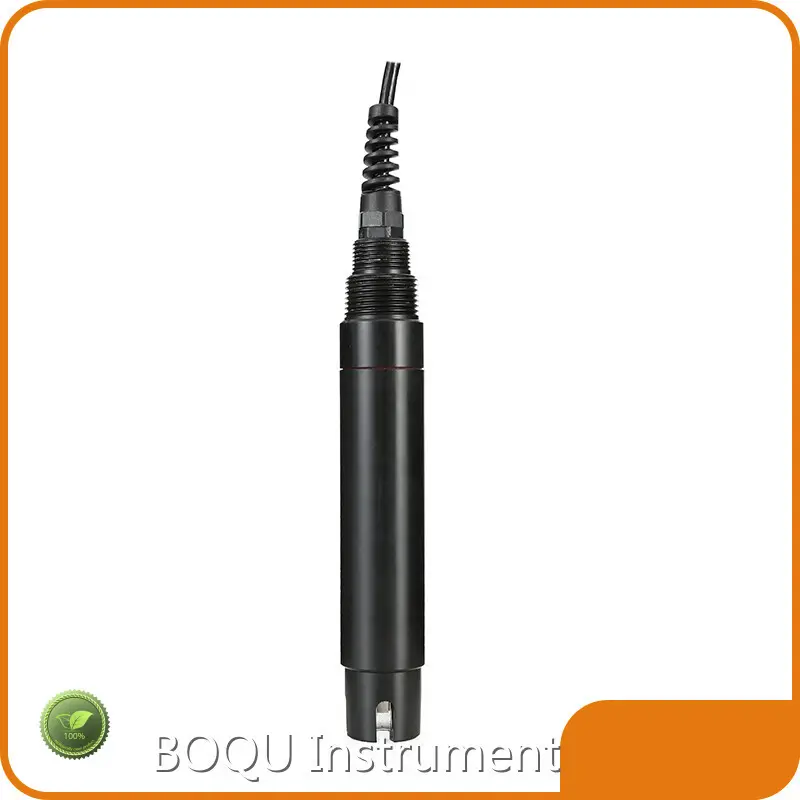

- The BH-485-EC “Texture Ec Sensor for Workplace” is a digital online conductivity (EC) sensor designed for real-time monitoring of water conductivity and temperature. It uses a composite electrode with built?in temperature sensor and automatic temperature compensation, and communicates over RS485 using the Modbus RTU protocol. Compact ABS housing (230 × 30 mm), multiple installation modes (sinking, pipeline, circulation) and a default 5 m cable (ODM customizable).
Product Value
2) Product features
Product Advantages
- Measurement: conductivity 0–2000 ?S/cm and temperature 0–50.0 °C.
Application Scenarios
- Accuracy & resolution: conductivity ±1% FS, resolution 0.01 ?S/cm; temperature ±0.5 °C, resolution 0.1 °C.
- Communication: RS485 (Modbus RTU), four?wire connection, communication distance up to ~500 m.
- Power: 12 V or 24 V DC supply, ~1 W consumption.
- Built?in automatic temperature compensation, automatic identification of standard solution, remote parameter setting and remote electrode calibration.
- Durable imported composite electrode for fast response, long life and low maintenance.
3) Product value
- Enables reliable, continuous online monitoring and control of water quality parameters, improving process stability and compliance (e.g., wastewater discharge, process water).
- Low maintenance and long electrode lifetime reduce operational costs.
- Standard Modbus interface and robust RS485 noise immunity simplify integration into industrial control systems and sensor networks.
4) Product advantages
- High measurement stability and precision with internal temperature compensation.
- Robust industrial design with anti?interference RS485 output and long communication range.
- Flexible installation options (sinking, pipeline, circulation) and customizable cable length.
- Remote configuration and calibration minimize on?site service needs.
- Low power consumption and compact form factor for easy deployment.
5) Application scenarios
- Industrial wastewater and sewage monitoring, effluent compliance control.
- Water treatment plants, filtration systems and process water monitoring.
- Cooling towers, boiler feedwater and circulation systems.
- Aquaculture, brewing and food & beverage process control.
- Environmental monitoring, laboratories and integration into SCADA/PLC systems.
