Top Selling Oil in Water Meter Company

Product Overview

1) Product overview

Product Features

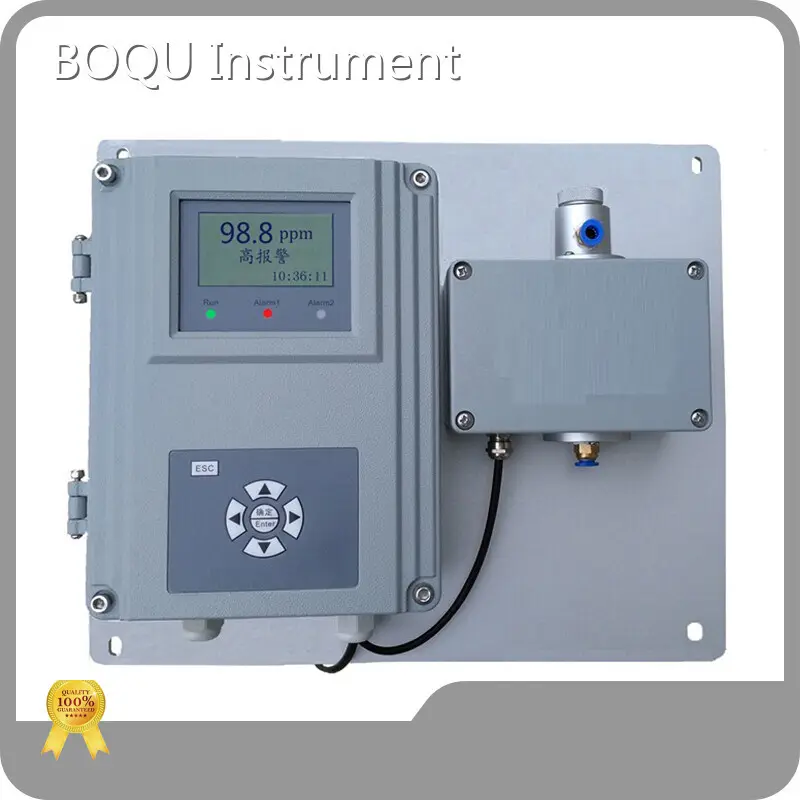

- Model: OIW-300P Online Oil-in-Water Analyzer from BOQU (Shanghai Boqu Instrument Co., Ltd.).

Product Value

- Purpose: continuous, online measurement and monitoring of oil concentrations in water (oil-in-water).

Product Advantages

- Measurement range: 0.1–299.9 ppm. Typical installation uses a 1/4" NPT sample line and compact enclosure (approx. 40×33×10 cm).

Application Scenarios

2) Product features

- Real-time online measurement for process control and compliance monitoring.

- Measurement performance: resolution better than ±2% and accuracy around ±3%.

- Data recording: onboard storage for up to >3 years (optional), configurable recording interval 0–30 minutes (default 10 minutes).

- Outputs and alarms: RS485 Modbus RTU, 4–20 mA analog output, four SPDT relay outputs (230 VAC, 5 A), two acoustic–optical fault alarms (alarm values and durations configurable).

- Operational range and utilities: working temperature 0–55 °C; power AC 100–230 VAC or 24 VDC (≈50 W); sample flow 0–3000 mL/min (no bubbles; better accuracy at low flow for low-range measurement).

3) Product value

- Provides precise, high-sensitivity oil concentration data to support environmental monitoring and regulatory compliance (e.g., discharge limits).

- Enables real-time process control and rapid response to excursions, reducing environmental risk and downtime.

- Long-term data storage and digital outputs simplify reporting, audits, and integration with PLC/HMI systems.

- Compact, robust solution that lowers operational and compliance costs by minimizing manual sampling and laboratory testing.

4) Product advantages

- Wide measurement range with high sensitivity and drift-free performance for reliable, repeatable results.

- Multiple standardized interfaces (Modbus RTU, 4–20 mA, relays, alarms) for direct connection to control systems without extra I/O hardware.

- Easy to operate and maintain, designed for continuous online use in industrial environments.

- Flexible power options and configurable recording/alarms to fit different site requirements.

- Backed by BOQU’s manufacturing and design experience, with responsive customer contact and product support.

5) Application scenarios

- Environmental discharge and compliance monitoring: bilge water, municipal effluent, storm runoff, holding ponds.

- Industrial process and wastewater: oil in produced water, cooling water, boiler condensate recovery, desalination intake monitoring, metal finishing, mining effluents.

- Fuel-handling and storage areas: drain systems around fuel storage tanks, engine cooling water, fuel-contaminated groundwater recovery sites.

- Power and utility plants: hydroelectric dam sumps, power plant cooling water reclaiming systems.

- Any site requiring continuous, high-sensitivity oil-in-water measurement for operational control, environmental protection, or regulatory reporting.
