Tss Sensor From China Fast Delivery

Product Overview

1) Product overview

Product Features

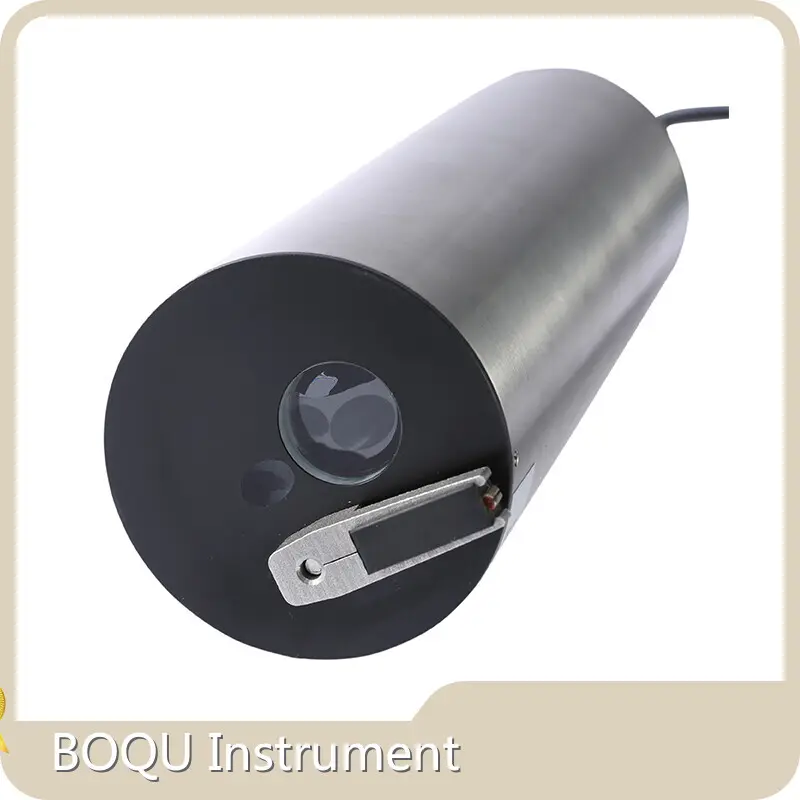

- The TSS (total suspended solids) sensor (models ZDYG-2087-01 / ZDYG-2085-01 family) is an online digital suspended solids and sludge concentration monitor from BOQU (Shanghai).

Product Value

- It uses infrared double-scattering (ISO7027-based) optics and provides digital RS485 (Modbus RTU) output for continuous field monitoring.

Product Advantages

- Rugged construction (SUS316L + PVC, fluorine rubber O?ring), IP68 protection, DC12V power and standard 10 m cable (extendable to 100 m). Fast China delivery available.

Application Scenarios

2) Product features

- ISO7027-compliant infrared double scattering light detection (minimizes color/chroma interference).

- Wide measuring ranges (examples: 0.01–20,000 mg/L; up to 120,000 mg/L options).

- Digital RS485 Modbus RTU communication; stable long-distance transmission and easy networking.

- Built?in self-diagnosis and simple calibration (sample and slope calibration).

- Optional automatic self-cleaning brush with user-set cleaning intervals; designed for low maintenance.

- Durable materials (SUS316L/PVC), IP68/NEMA6P protection, operating 5–60 °C and ≤0.4 MPa inlet pressure.

3) Product value

- Provides continuous, accurate, and reliable TSS/sludge concentration data for process control and compliance monitoring.

- Reduces downtime and maintenance costs via automatic cleaning and robust self-diagnostics.

- Easy integration into SCADA/PLC systems through standard Modbus RTU output accelerates commissioning.

- Cost-effective solution for operators needing long-term, stable suspended solids measurement.

4) Product advantages

- High measurement stability and repeatability thanks to double-beam IR scatter and ISO7027 methodology.

- Less impacted by sample color compared with visible-light instruments.

- Strong anti-interference performance and digital signal integrity over long cable runs.

- Rugged, corrosion-resistant construction for harsh environments and subsea mounting capability (IP68).

- Flexible measurement span options to suit low to very high TSS concentrations.

5) Application scenarios

- Municipal wastewater treatment plants: influent/effluent and sludge concentration monitoring.

- Drinking water plants and water stations: turbidity/TSS control and process monitoring.

- Surface water/environmental monitoring: rivers, lakes and reservoirs.

- Aquaculture and farming water quality management.

- Industrial process effluent monitoring and on-line quality control across chemical, food, paper and other industries.
